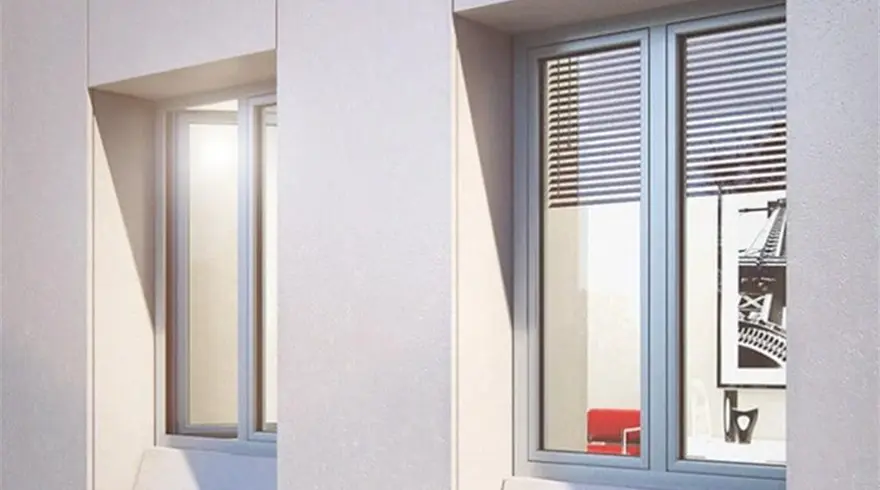

SMARTIA M9660 is an insulated Tilt & Turn system for areas with warmer climate, ensuring high quality constructions and application of various typologies with considerable thermal performance. It is ideal for renovations, combining safety and functionality, without requiring high investment costs.
Advantages
- Very good value for money
- High energy savings due to the high energy efficiency of the system
- Increased level of security
- High level of sound insulation
- Ease of use and high functionality
- Modern design for windows either with flat or curved line
- High quality with certified performances
- Increased static loads and functionality in case of severe weather conditions
- Entrance doors with ease of access according to specifications for people with special needs
Generic
- Window Type: Hinged
- Thermal Insulation: Yes
- Exterior Shape: Classic, Curved, Flat
Performance
- Water Tighness: CLASS Ε1650
- Air Permeability: CLASS 4
- Burglar Resistance: RC2
- Sound Reduction: 45 dB
Features
- UF: from 1.8 up to 2.5 W/m²K
- Sash Weight: up to 180 Kg
- Types Of Typology: For all tilt & turn typologies
Technical Specifications
- Frame Depth: 56 mm
- Sash Depth: 63,5 mm
- Minimum Visible Aluminium Face Height: 82 mm
- Minimum Visible Aluminium Face Width At The Central Vertical Column (Adjoining Profile): 61 mm
- Glazing Type: Double - Triple
- Maximum Glazing Thickness: from 20 up to 49 mm
- Mechanism: Euro- groove, Euro- nut
- Sealing Method: Perimetrical at 3 levels with EPDM gaskets
- Minimum Threshold Height: 15 mm
- Type Of Thermal Insulation: Polyamides 24 mm, PE insulation Foam
