Rotation Stability with Horizontal Guide Bearings Integrated horizontal guide bearings are specifically designed to prevent rotation of the upper bearings, ensuring secure and stable folding movement. By maintaining precise alignment throughout the operation, these bearings enhance structural integrity and contribute to long-lasting performance, even with frequent use. This advanced system not only guarantees smooth functionality but also improves user safety and overall reliability of the folding door mechanism.

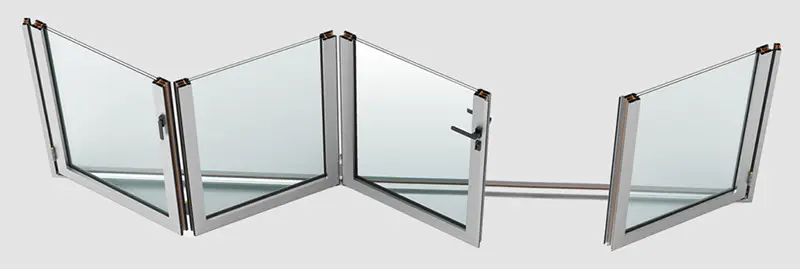

Door Configurations
For more information about available configurations, please contact us.
Application Features
- Lower Carrier Bearings
- Lower Carrier Bearings
- Possibility to Collect the Sash at 45°
- Possibility to Collect the Frame at 90°
- Heat and Sound Insulation
Technical Specifications
- The weight of the sash is carried by the bearing connected to the lower frame
- Frame Width 29 mm
- Frame Length 86 mm
- Sash Width 76 mm
- Sash Length 76 mm
- Maximum Sash Carrying 120 kg
