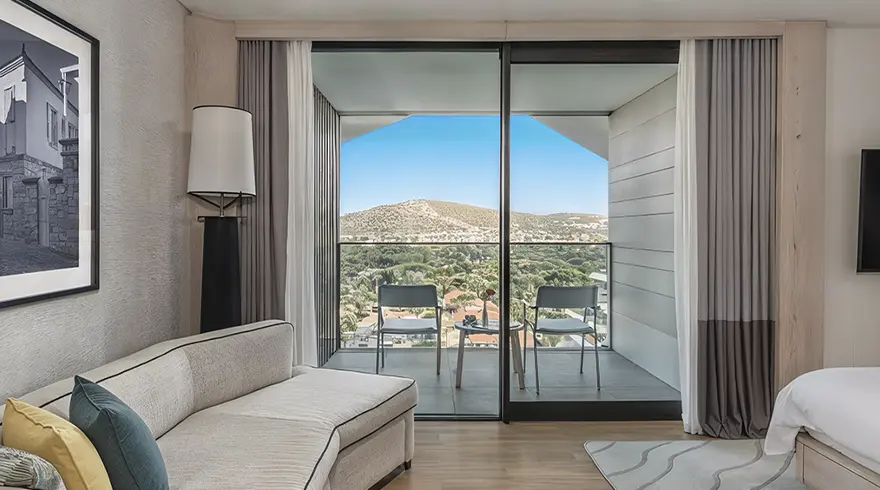

With its slim interlock design, the system enhances aesthetics and brings more light and view into your living spaces.
- Sash Carrying Capacity: 200 kg standard / 300–400 kg with HBSB mechanism
- Integrated Fly Screen: Fly screen design is seamlessly integrated into the system on all frame types
- Sash Connection Options: 45° and 90° corner joint alternatives available for sash assembly
- High Durability and Smooth Operation: Stainless steel rail system combined with specially designed bearings ensures long-lasting performance and enhanced user comfort
Sliding Types
The 3500 sliding system utilizes the HBSB lift-and-slide mechanism, enabling effortless movement of heavy sashes while maintaining superior stability. This innovative system enhances user comfort, provides high security, and allows for wide openings without compromising smooth operation.
For more information about available configurations, please contact us.
Application Features
- HBSB Mechanism
- Flyscreen
- 45° and 90° Sash Joint
- 40 & 50 mm Thickness Options in Medium Seam
- Inner and Exterior Flooring Facing Safe
- Ease of Use and Functionality
- Mono Rail Frame
- 3 Track Frame

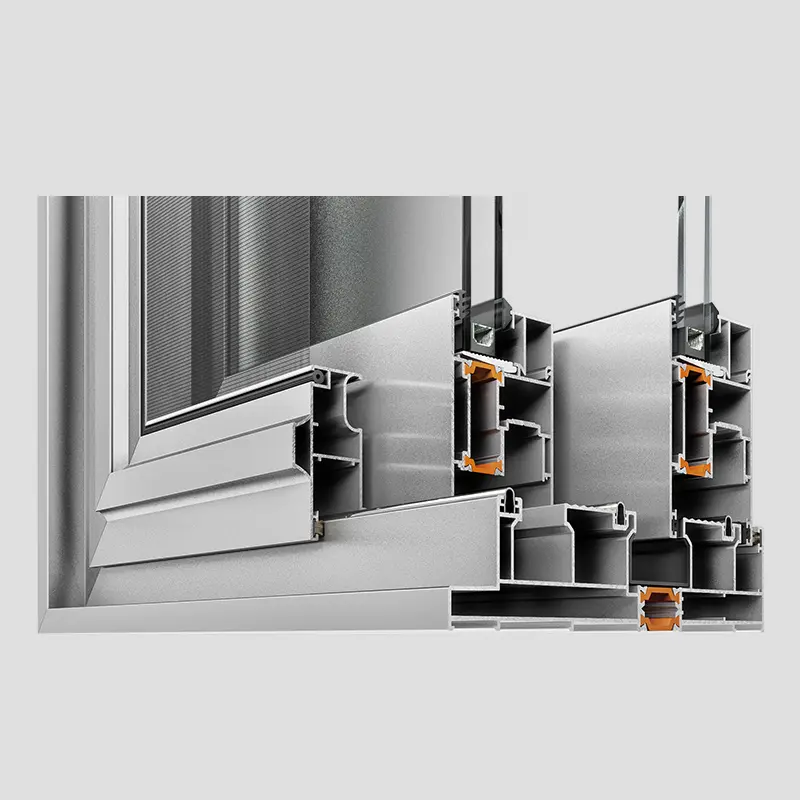

Technical Specifications
- Sash Width 54 mm
- Sash Length 94 mm
- Frame Length 44 mm
- Glass Thickness 21-44 mm
- Max. Sash Carrying Capacity 200 kg / 300-400 kg
- Insulation Bridge 24 mm
