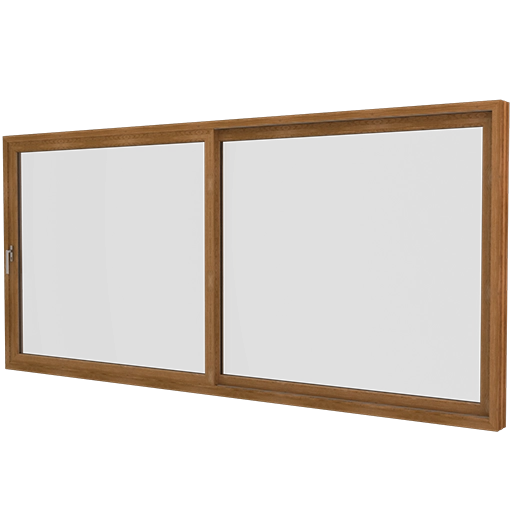

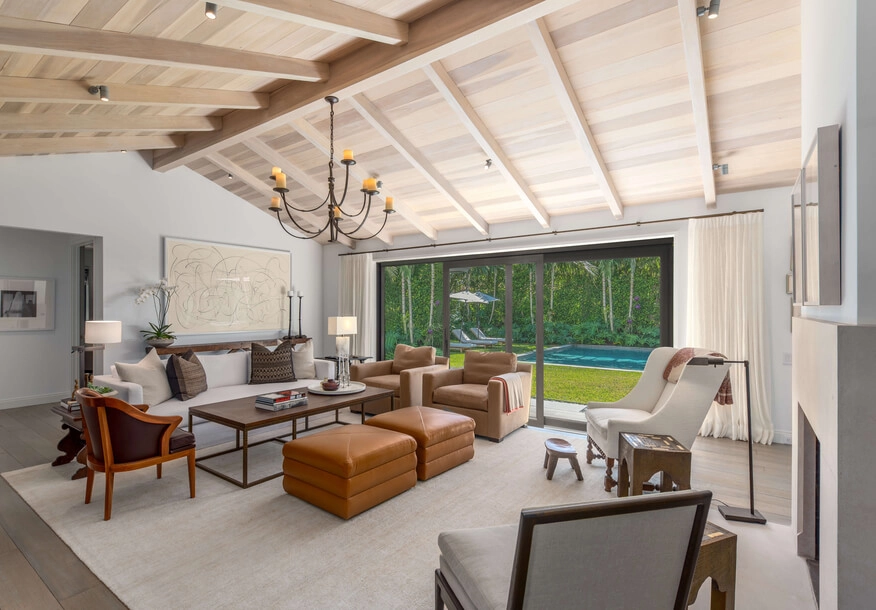

Combining ease of use with comfort, security and insulation, the Pimapen Infinity Lifting & Sliding Series offers you a great performance with an interrupted view in wide and high spaces.
Full harmony with your architecture thanks to laminated color alternatives resistant to tough weather conditions requiring a lower level of maintenance. In addition to unlimited options of colors, it is possible to deliver a full harmony with the façade of your building by means of applying different laminated colors for the internal and external surfaces.
Unlimited Options of Colors
Profile

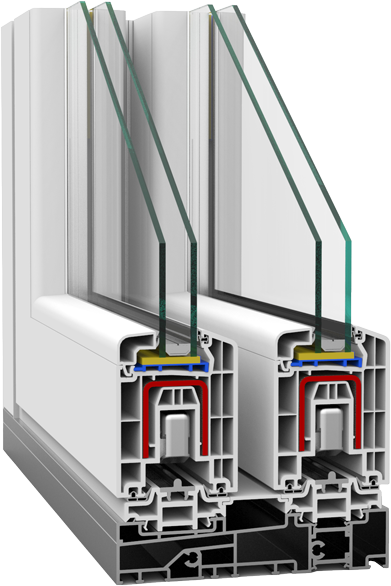

This Pimapen Infinity – HBSB Sliding System has an 8-cubicle frame profile of 175 mm in width, and offers options for sub-frames made of PVC and Aluminum. You may use an aluminum sub-frame with heat insulation barrier if you wish to have a lower sill. Delivers a higher strength against wind loads thanks to the large cubicle on the casement profile.
Design
The casements of the Infinity – HBSB Sliding System are up to 3 meters in width and up to 300 kg in weight. This allows for wider glazing openings, creating spacious spaces. It is also possible to install 2-, 3-, and 4-casement applications. Allowing for the installation of a lower sill, this system offers comfortable transitions by means of using heat insulation barrier aluminum sub-frame.
Glazing Combinations
There are single, double and triple glazing units of 4 mm to 39 mm and, glazing beads allowing for the use of panels. Secure glazing installations that should be used for projects deliver a higher level of resistance against impacts. Thanks to the special design glazing beads with oval lines, eye-catching and elegant profile-glazing joints are offered.
Equipment
Ease of use is offered without the need for extra power thanks to the equipment used in the system applied in wide spaces. Possible to choose window and door handles of different colors in harmony with the architectural line of your home.
Technical Specifications
- Profile Width (frame): 175 mm
- Profile Width (casement): 76 mm
- Sub-Frame Installations: PVC / ALM
- Profile Standard: A Class (TS EN 12608-1)
- Gasket Type - Color: TPE/EPDM - Gri / Black
- Glazing Thicknesses (mm): 4, 12, 20, 24, 26, 30, 36, 39
